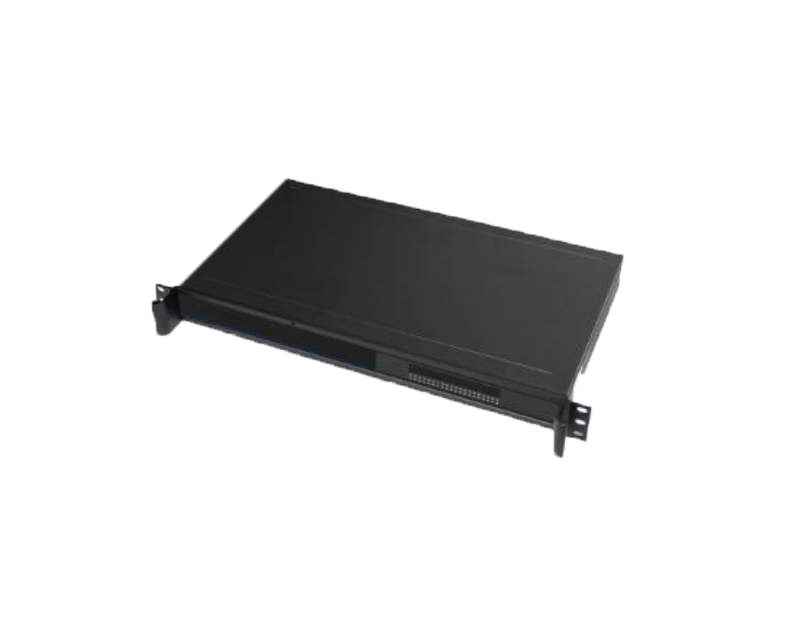

IP Alarm Gateway XUC-YGT30
Compliant with the standard Modbus TCP protocol; frequency response: 250～3000 Hz. Once the DI status changes, the module immediately and actively uploads a piece of data to the connected peer device without the need for host computer query.
Product Details
Related Cases
Related Post
Full-port protection against overcurrent, overvoltage, reverse connection and miswiring to prevent device damage caused by incorrect wiring.
The product is equipped with triple lightning protection hardware to withstand 2kV/1kA (8/20μs current wave). It supports wide-temperature operation ranging from -40℃ to 85℃ and humidity tolerance of 5% to 95%.
Adopting special protection technology, it is suitable for extreme environments such as cold chain warehouses, dusty workshops and chemical plants.
The hardware adopts a dual watchdog design to ensure stable and reliable operation without crashes. The integrated software watchdog enables automatic reset in case of anomalies, thus guaranteeing system operation.
It features timely response, high-efficiency processing and reliable operation.
Once the DI status changes, the module will immediately and actively upload a piece of data to the connected peer device, eliminating the need for host computer query and realizing real-time monitoring of input changes for users. It supports electronic relay output with high reliability, fast response, long service life, impact resistance, low leakage and noiseless operation.
It supports bidirectional transparent transmission between serial port and network.
It provides multi-channel DI/DO signal acquisition and output functions to meet the requirements of multi-point switch quantity collection and control.
